Place of Origin: | China |
---|---|
Marca: | PRINTYOUNG |
Certificação: | CE |
Model Number: | DX1450T |
Minimum Order Quantity: | 1 Set |
Preço: | US 53500 ~ 56500 Set |
Packaging Details: | Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 30 Set/Sets per Month |
Model: | DX1450T-64 , DX1450T-96 | Laser System: | 830nm LD , 64/96channels |
---|---|---|---|
Resolution: | 2400 dpi | Exposure Structure: | external drum |
Max. Plate Size: | 1450 * 1180 mm | Min. Plate Size: | 650 * 550 mm |
Max. Hanged Line: | 300 lpi | FM Dots Output: | AM/FM hybrid screening |
Repeatability: | ± 0.005 mm | Weight: | 2000 kg |

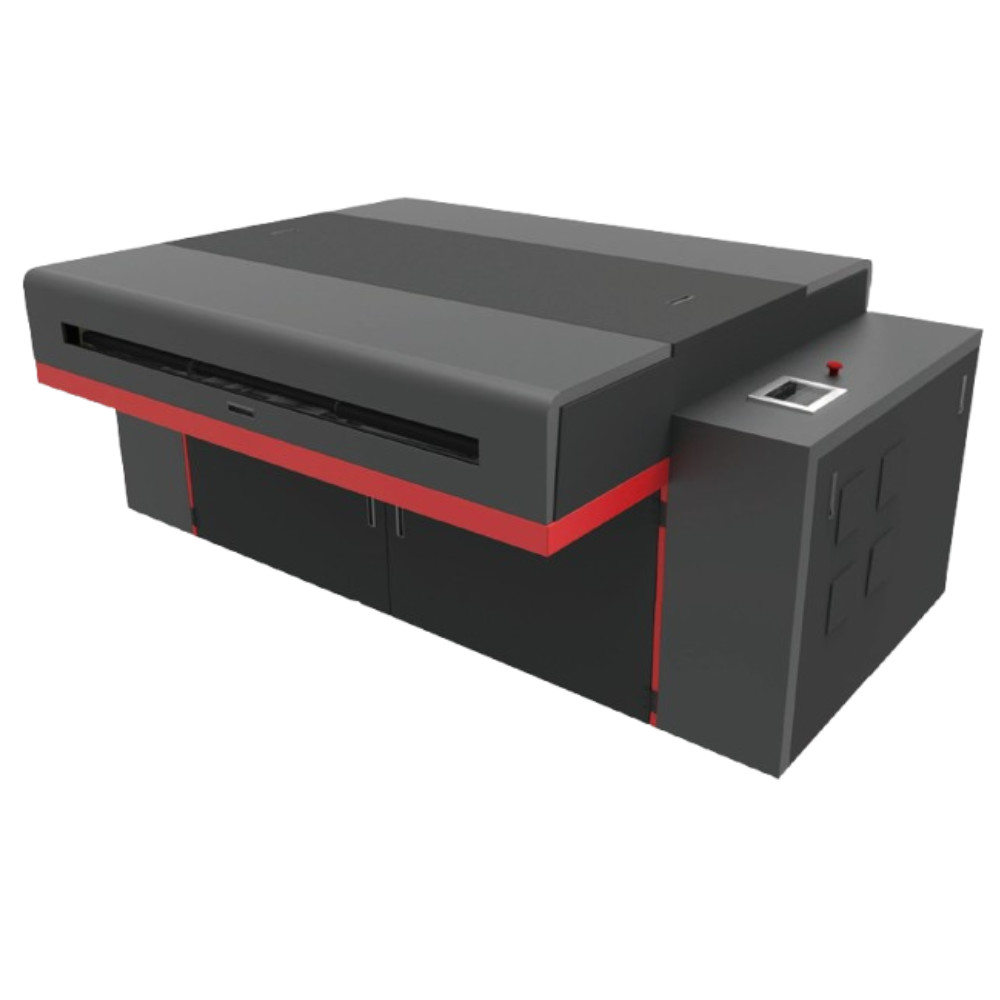

DX1450T Máquina de fabricação de placas CTP
|
||
---|---|---|
Modelo
|
DX1450T-64
|
DX1450T-96 |
Sistema de laser
|
830nm LD, 64 canais
|
830nm LD, 96 canais |
Resolução
|
2400 dpi
|
|
Velocidade de saída(1450*1150 mm)
|
18 p/h
|
23 p/h |
Estrutura da exposição
|
tambor externo
|
|
Tamanho máximo da placa
|
1450 * 1180 mm
|
|
Tamanho mínimo da placa
|
650 * 550 mm
|
|
Espessura da chapa
|
Placa de ctp térmica sem processamento de 0,15 ~ 0,4 mm
|
|
Max. Linha pendurada.
|
300 lpi
|
|
FM Dots Output
|
Revisão híbrida AM/FM
|
|
Repetitividade
|
± 0,005 mm
|
|
Fornecimento de energia
|
380V 3Φ 50/60Hz 10kw pico
|
|
Dimensão externa
|
2736 * 1750 * 1350 mm
|
|
Peso
|
2000 kg
|
