ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine

ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine
Informação Básica
Lugar de origem: China
Marca: PRINTYOUNG
Certificação: CE
Número do modelo: ZX-800
Quantidade de ordem mínima: 1 conjunto
Preço: USD 23500 Set
Tempo de entrega: 30 DIAS DE TRABALHO
Termos de pagamento: L/C, T/T
Habilidade da fonte: 30 conjuntos por mês
contacto
Capacidade de produção: 15 ~ 20 vezes/min Tamanho do papel: 300 * 250 mm
máx. Tamanho da caixa: 250*150*100mm mín. Tamanho da caixa: 90*110*23mm
Tensão de energia elétrica: 380 V 50 Hz Material Adequado: Papel revestido PE
Espessura do papel: 200 ~ 300 g/m² Potência total: 6 kw

ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 0

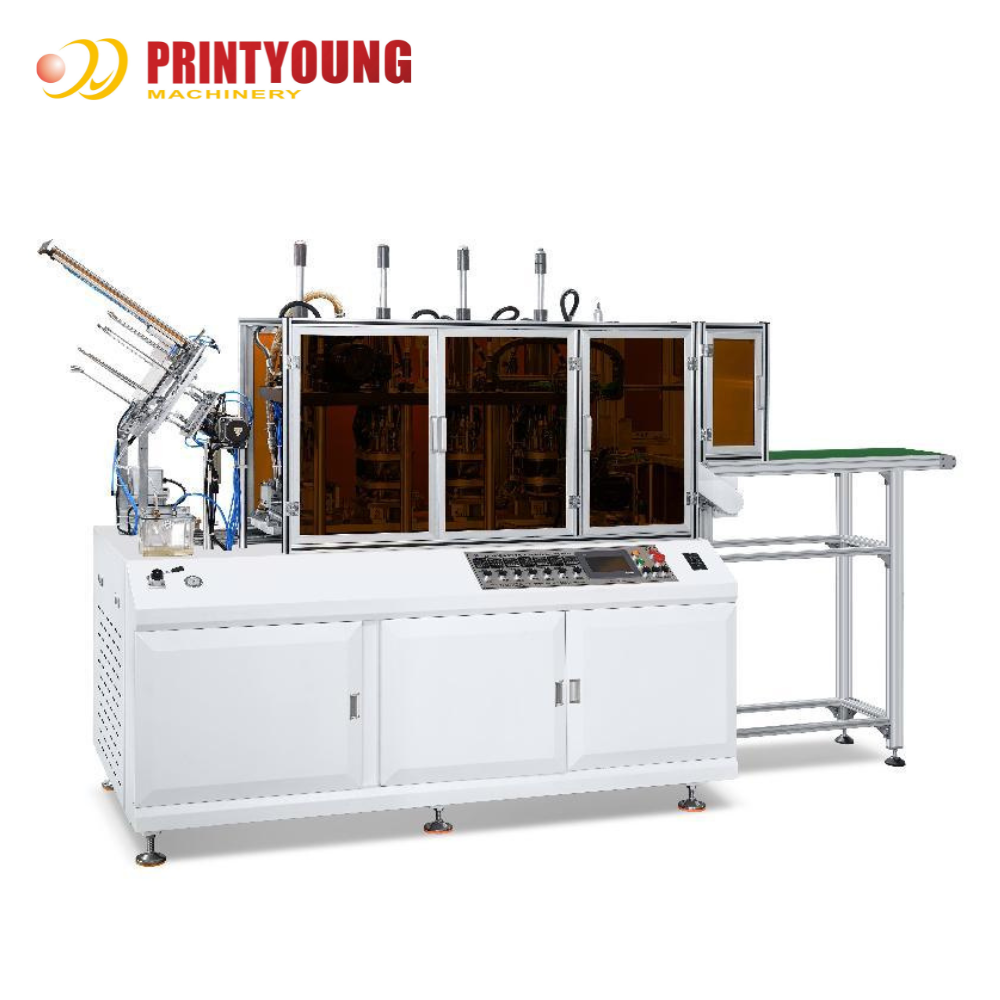

ZX-800 Automatic Square Bowl Forming Machine
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 1
Features
Automatic square bowl forming machine is a multi-station forming machine.It uses a microcomputer to control the servo system to automatically take paper,full servo forming,curling,counting and collecting continuous processes. Compared with traditional automatic paper product forming equipment,this equipment recombines the principles of pneumatic and mechanical combination,and has the advantages of higher production speed,more stable performance,safer operation,more convenient maintenance and more humanized structural design.
Technical Parameters
Type
ZX-800
Production Capacity
15 ~ 20 times/min (actual production according to product size)
Paper Size
300 * 250 mm
Max. Box Size
250 * 150 * 100 mm
Min. Box Size
90 * 110 * 23 mm
E-power Voltage
380V 50Hz (can be changed)
Suitable Material
PE coated paper
Paper Thickness
200 ~ 300 g/m²
Total Power
6 kw
Total Weight
700 kg
Overall Dimension
2100 * 750 * 1800 mm
Working Air Source
air pressure 0.2 ~ 0.3 Mpa (need to buy compressor)
Applications
It is a paper container forming equipment for producing coated paper trays,square paper bowls,square paper cups,square paper trays and so on.
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 2
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 3
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 4
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 5
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 6
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 7
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 8
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 9
