Name: PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-S90
Price: 15000 USD
Availability: InStock

PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty

Informação Básica

Lugar de origem:	China
Marca:	PRINTYOUNG
Certificação:	CE
Número do modelo:	PRY-S90

Quantidade de ordem mínima:	1 conjunto
Preço:	USD 15000 Set
Detalhes da embalagem:	Adota embalagens à prova de umidade e à prova de choque, adequadas para transporte rodoviário de lon
Tempo de entrega:	30 dias úteis
Termos de pagamento:	L/C, T/T
Habilidade da fonte:	30 conjuntos por mês

contacto

Especificações dos copos:

3 ~ 9 onças

Diâmetro superior do copo de papel:

40 ~ 80mm

Diâmetro inferior do copo de papel:

30 ~ 56mm

Altura do copo de papel:

40 ~ 95mm

Especificação em papel:

Único/papel dobro do PE

Grama de Peso:

150 ~ 320g

Especificação da fonte de ar:

0,6 ~ 0,8 MPa, 0,4 m³/min

Peso:

2.800kg

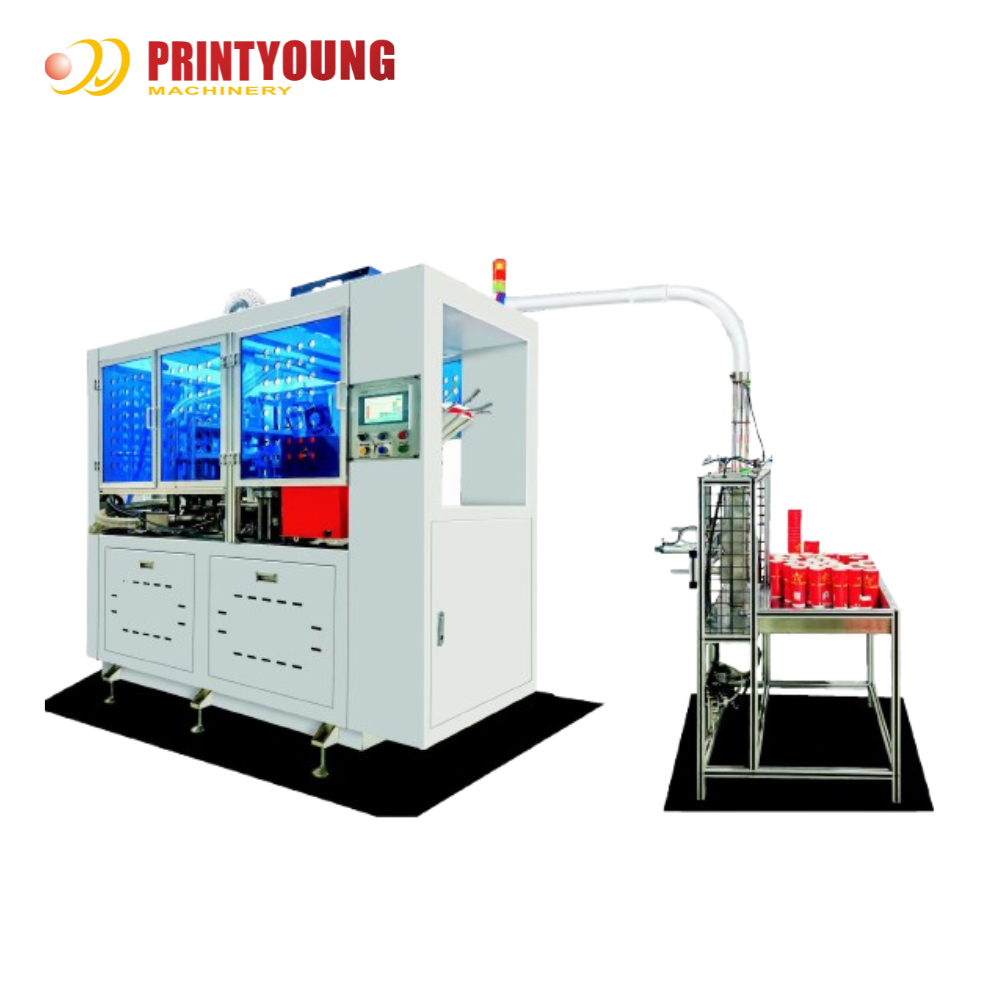

PRY-S90 Paper Cup Forming Machine

Features

The fast paper cup machine is designed and manufactured based on the traditional cam transmission operation model (mechanized transmission gear structure).In the paper cup and bowl equipment industry for many years,its stability,speed,accuracy and quality have been recognized by the market and customers.The integrated control of paper suction,cup turning,cup lifting and other processes operates smoothly,and has the advantages of quickly identifying and solving faults.

1.PLC touch screen control system makes the entire machine operation simplely and smoothly,while multi-station light and shadow alarms ensure equipment protection more intelligent,with simpler worker operation.

2.The transmission components,including camshaft and gears,are all made from 20CrMnti material through complex process such as rough machining,quenching,and precision grinding manufacturing;thereby extending the maintenance-free period and ensuring greater stability of the equipment.
3.The suction paper unit can be optionally configured with upper and lower suction modes or a rotating suction paper mode.Additionally,automatic paper feeding and base paper lifting are available as optional accessories downgraded auxiliary function.

Technical Parameters

Model	PRY-S90
Cups Specifications	3 ~ 9 oz
Paper Cup Top Diameter	40 ~ 80 mm
Paper Cup Bottom Diameter	30 ~ 56 mm
Paper Cup Height	40 ~ 95 mm
Paper Specification	single/double PE paper
Gram Weight of Weight	150 ~ 320 g
Capacity	100 ~ 120 pcs/min
Power Supply	380V 50Hz 3Phase
Total Power	13 kw
Air Source Specification	0.6 ~ 0.8 MPa , 0.4 m³/min
Weight	2800 kg
Machine Size	2300 * 1200 * 1800 mm
Collection Table Size	900 * 600 * 1500 mm
