Casa ProdutosMaquinaria de processamento de papelCK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine

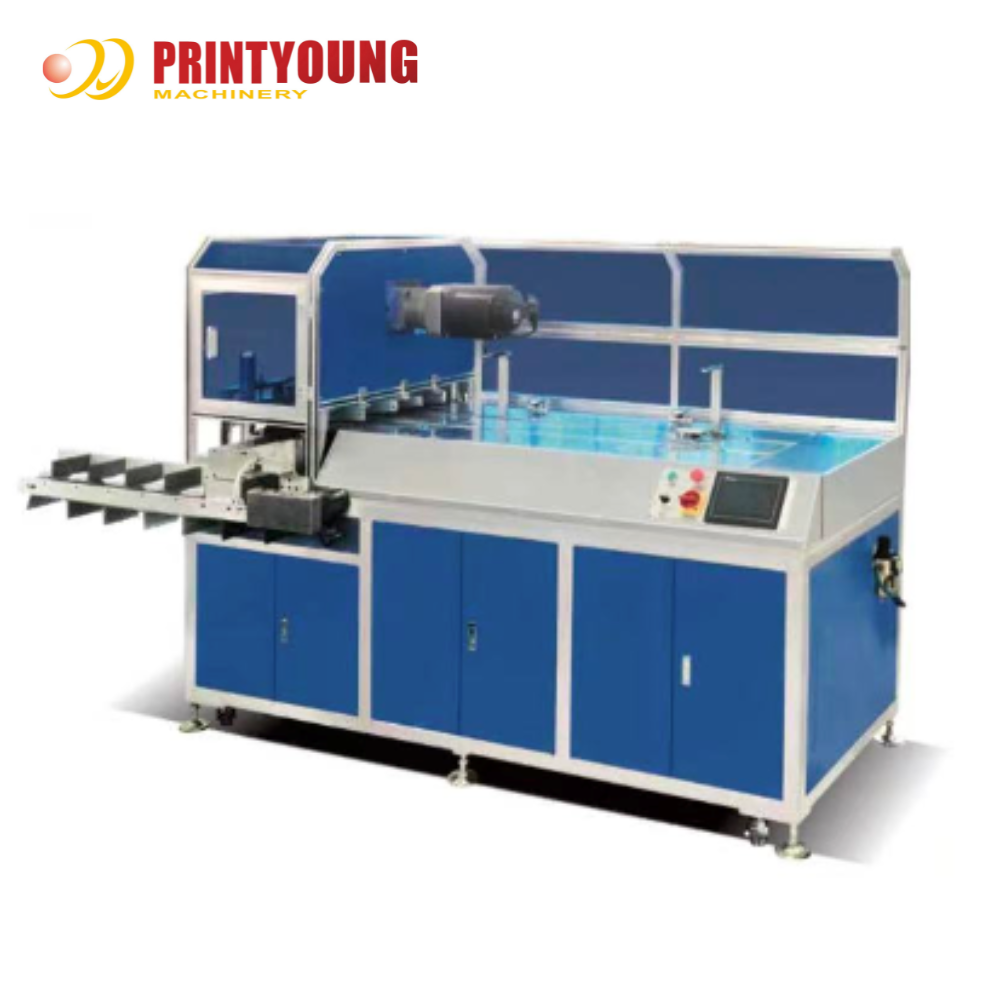

CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine

CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine
Informação Básica
Lugar de origem: China
Marca: PRINTYOUNG
Certificação: CE
Número do modelo: CK-760
Quantidade de ordem mínima: 1 conjunto
Preço: USD 22500 Sets
Tempo de entrega: 30 DIAS DE TRABALHO
Termos de pagamento: L/C, T/T
Habilidade da fonte: 30 conjuntos por mês
contacto
Modelo: CK-760 Potência total: 3.5 KW
Fonte de gás: 6 kg/cm2 Consumo de Gás: 80 L/MIN
peso: 850kg Precisão de perfuração: ± 0,10mm
Colheita: 500 peças/hora Forma de Controle: Programa PLC + sistema servo

CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 0
CK-760 Cards Die Cutting Machine
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 1
Features
Automatic feeding,fillet shape,round hole positioning,automatic sorting collection,one-time die-cutting molding.
1.With high sensitivity photoelectric sensor and imported ball screw feeding the position parameters of each punching point can be adjusted,and the accuracy is high.
2.Servo motor control punch power,accurate die cutting,low noise,stable power,adjustable punching speed,one time punching of 1-3 pieces,greatly improving the output.
3.The automatic card receiving system realizes that after punching and cutting,the finished products are collected and stacked in order.
Technical Parameters
Model
CK-760
Power Supply
AC 380V 50Hz
Total Power
3.5 kw
Gas Source
6 kg/cm ²
Gas Consumption
80 L/min
Weight
850 kg
Punching Precision
± 0.10 mm
Applicable Materials
PVC, ABS, PET, PETG, paper card, mixed materials
Applicable Layout
according to the customer's requirements
Yield
500 pieces/hour
Form of Control
PLC program + servo system
Number of Operators
one people
Dimensions
2700 * 1300 * 1720 mm
Applications
The machine is suitable for punching and cutting large size panels such as early education enlightenment cards, children's books,wearing ring cards,etc.On the market,the machine is fast,after punching.It is automatically stacked in order,without manual participation;the edge of the card is smooth,and one-time die-cutting is formed.
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 2
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 3
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 4
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 5
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 6
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 7
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 8
